MC-L2
Inline laminator for added durability and security
Increasing card longevity and security
The MC-L2 laminator module is the ideal solution to enhance the durability and the security of cards printed on the MC310 direct to card printer or XID-M retransfer printer series. Easy to install and operate, the MC-L2 works inline to laminate cards at exceptional speeds, laminating both sides of the card in less than 20 seconds thanks to the simultaneous dual-side lamination process.

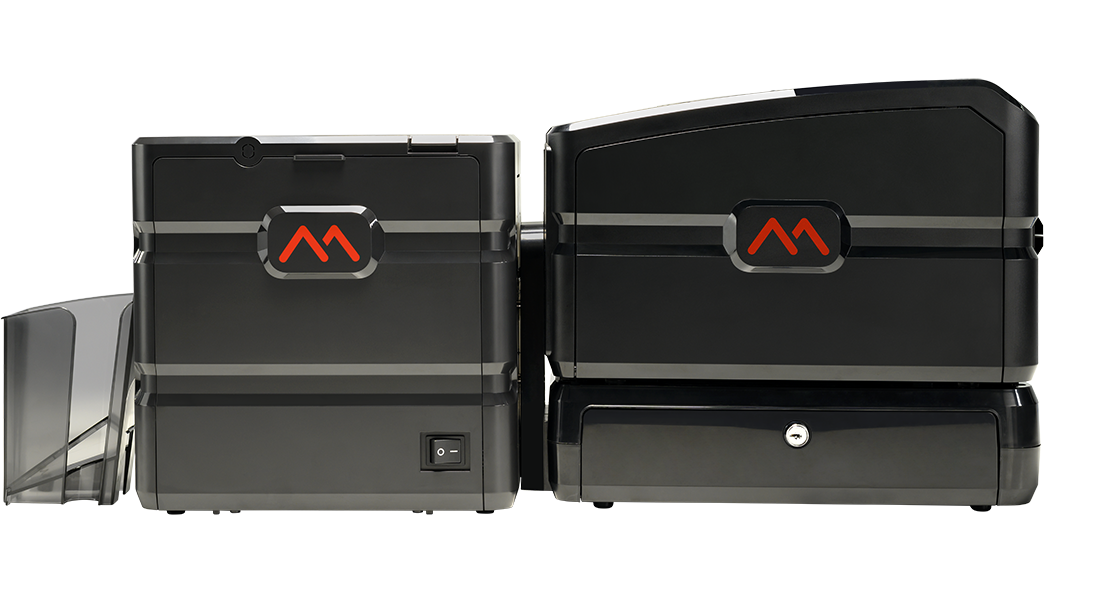

The MC-L2 can be easily connected to the MC310 using a connection plinth, which also serves as a useful lockable storage unit for cards and cleaning kits.
The MC-L2 is available in three different configurations to suit any card lamination application:
• Single-sided lower cassette only
• Single-sided upper cassette only
• Dual-sided with both lower and upper cassettes
Key strengths
Ideal for
- National ID cards
- Driving licenses
- Resident cards
- Corporate cards
- Campus / student cards
Options
- Continuous overlay film or patch laminate
- Standard or customized holographic or
clear laminate - Single-sided (upper or lower cassette) or
dual-sided lamination - Front cover lock
Enhancing card security

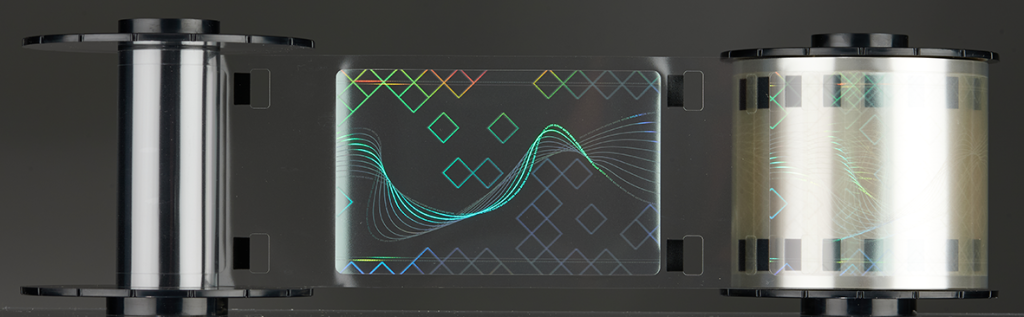

Once personalized by the printer, cards can be laminated with the MC-L2 by using a heat-sealing film. This film can contain holographic and other Visual Security Elements (VSEs) for enhanced protection. Matica offers a range of standard holographic designs in both patch laminate and continuous film formats. For the ultimate security protection, organisations can opt for a customized holographic laminate with VSEs that are unique to them – this approach is often adopted for government secure documents such as driving licenses and national ID cards.
Reinforcing card durability
Another important reason to laminate pre-personalized cards is to increase the durability and extend the life of the card, thanks to the enhanced mechanical and UV resistance of the lamination material. A card laminated with a 1.0 mil (35 micron) patch can have a lifecycle of up to 10 years – a timeframe often mandated for government/citizen ID schemes.
Product features
Technical specifications
Lamination
Lamination method
Heater roller
Lamination mode
Single and dual-sided
Halogen lamp
Single: 500W x 1 vertical
Dual: 500W x 2 vertical
Lamination speed
19 seconds
Laminates
Security
Protected with RFID tag
Thin film overlay
Clear or standard/customized holographic 1000 repeats/roll
Patch
Clear or standard/customized holographic 500 repeats/roll
Patch thickness
0.5 mil (clear)
0.6 mil (holographic)
1.0 mil (clear/holographic)
Cards
Card materials
PVC, PET-G, PET, ABS, PC
Card format
ISO CR-80-ISO 7810
53.98 x 85.60 mm
(3.375” x 2.125”)
Card thickness
0.76 -1.0 mm
(30 – 40 mil)
Capacity
Output stacker: 150 cards
Manual single card feed or inline with MC310 or XID-M series printers
Connectivity
Connectivity
USB 2.0 (High-speed)
RS232
Platform
Printer dimensions (L x W x H)
320 x 214.1 x 320.1 mm
(12.5″ x 8.4″ x 12.6″)
Weight
10kg
(22lbs)
Consumables
| Type | Format | Capacity | Part No |
|---|---|---|---|
| Clear | Thin film overlay | 1000 | PR26605500 |
| Secure A | Thin film overlay | 1000 | PR26608503 |
| Customized | Thin film overlay | 1000 | PR26605502 |
| Clear | 0.5mil clear patch | 500 | PR26605406 |
| Clear with chip cutout | 0.5mil clear patch | 500 | PR26605407 |
| Secure A | 0.6mil Holographic patch | 500 | PR26608412 |
| Secure A chip cutout | 0.6mil Holographic patch | 500 | PR26608414 |
| Secure B | 0.6mil Holographic patch | 500 | PR26608413 |
| Customized holographic | 0.6mil Holographic patch | 500 | PR26605411 |
| Clear | 1.0mil clear patch | 500 | PR26605401 |
| Clear with chip cutout | 1.0mil clear patch | 500 | PR26605402 |
| Secure A | 1.0mil Holographic patch | 500 | PR26608415 |
| Customized holographic | 1.0mil Holographic patch | 500 | PR26605410 |
• To ensure lamination quality and card durability and overall laminator reliability, use chromXpert laminates only.
• Supply cores and cassettes are recyclable.
